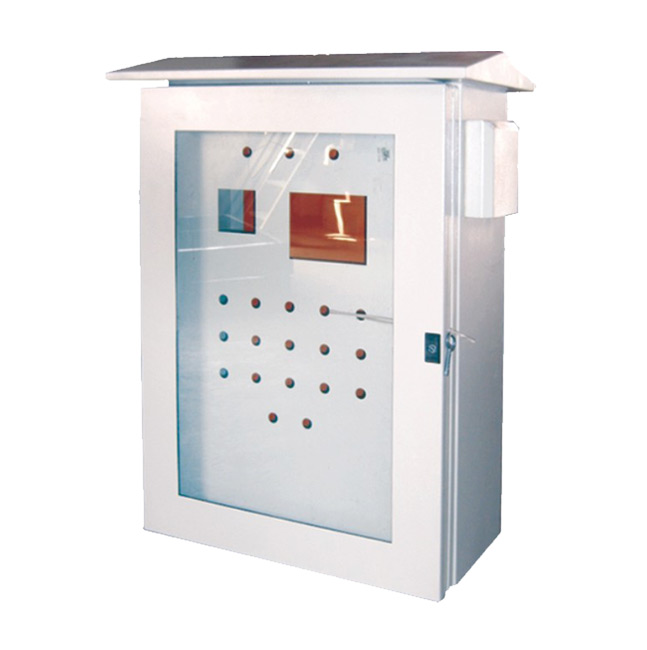

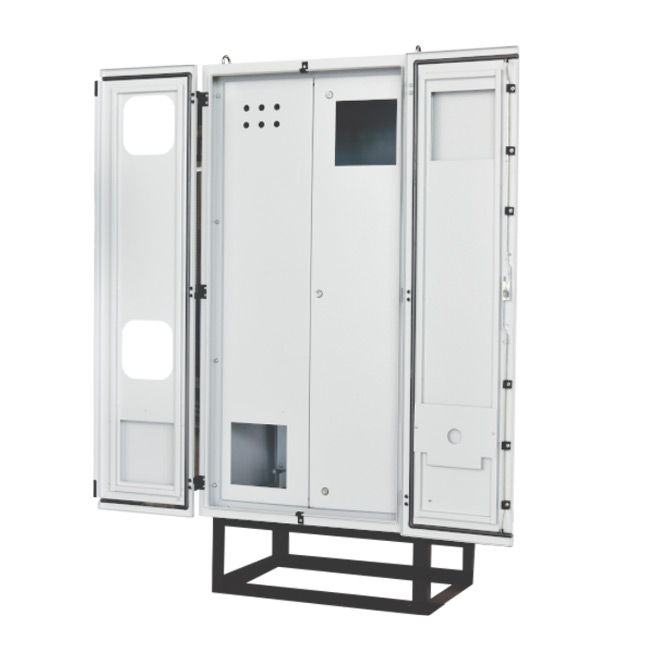

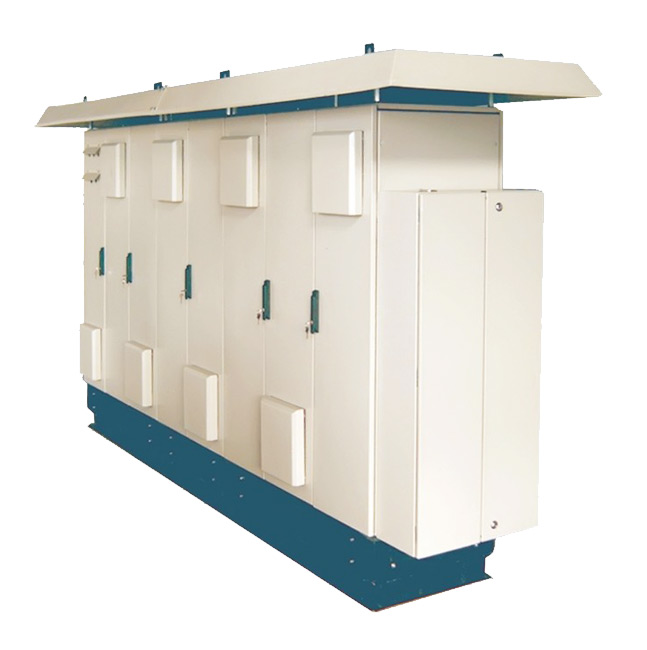

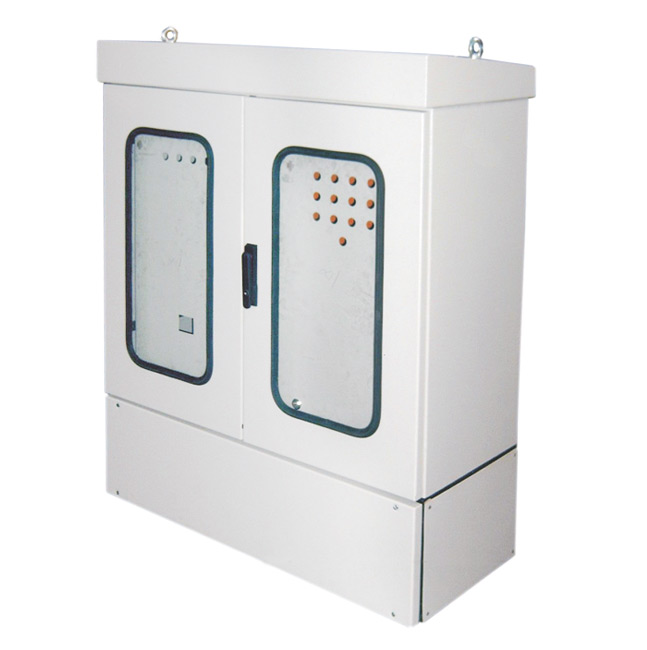

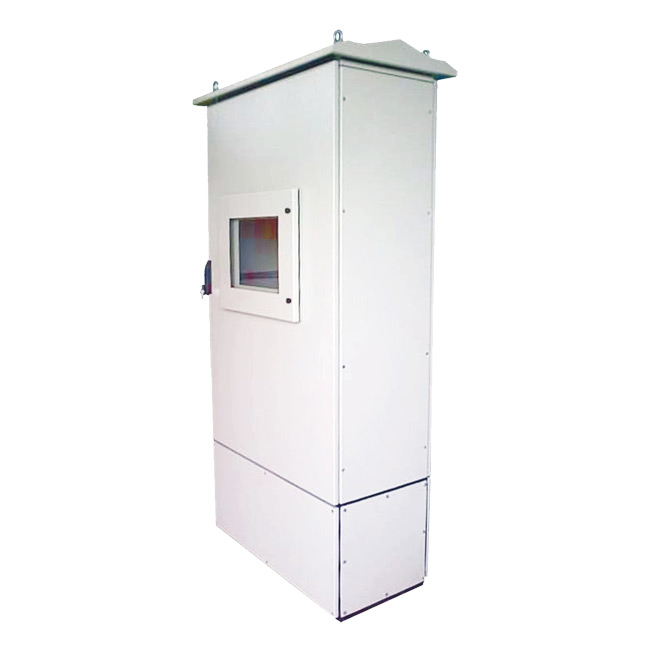

Outdoor Enclosures
Outdoor Enclosures
Outdoor Enclosures

Outdoor Enclosures
Outdoor Enclosures



Features
  • The best IP protection (IP-55).
  • Better strength.
  • Modularity for internal assembly. Doesn't require more pre-engineering.
  • Rain canopy is fitted on top of enclosure to minimize rain water contact with enclosure.
  • Universal mounting of doors and covers so that they can be interchanged or reverted,
  • Fire retardant & chemical resistant Polyurethane foamed D type gaskets (workability at 100°C temperature) on doors and covers for better IP protection.
  • Detachable all the doors and covers facilitates faster interior assembly.
  • Stronger support channels (plated or powder coated) screwed on the doors.
  • Punched holes having pitch of 12.5mm.
  • Depth and height adjustable mounting of component plate and horizontal / vertical partitions.
  • Clamped and folded gland plates in parts for easy removing and fitting. Gland holes not necessary to decide earlier, can be drilled at site also.
  • Stainless Steel hinges and hardware is used for long lasting.
  • For low corrosive area special outdoor duty powder coating is provided on CRCA MS sheet enclosure to resist UV rays and fading effects due to outdoor environment.
  • For medium corrosive area special outdoor duty powder coating is provided on galvanized (GPSP - Galvanized Plates with Skin Passed) sheet enclosure to resist UV rays and fading effects due to outdoor environment. It lasts double the normal enclosure.
  • For high corrosive area these are manufactured in stainless steel. It is life long lasting.
  • Sheet metal folded base looks attractive with ease in grouting (Grouting holes visible). ISMC base also can be provided.


Standard sizes :
Width Depth Height Base
300mm-1200mm
(in pitch of 100mm)
120mm-1000mm
( pitch of 50mm)
300mm-2200mm
(pitch of 100mm)
75mm, 100mm
150mm, 200mm

Up to 1000mm width single door, above sizes will have split door.
