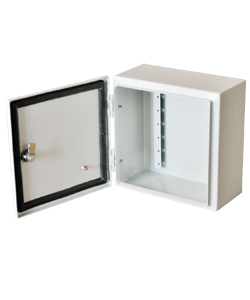

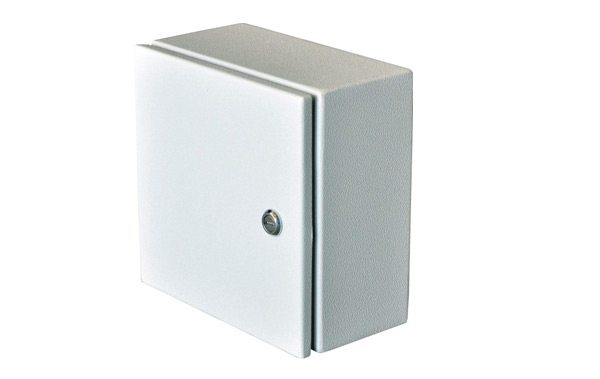

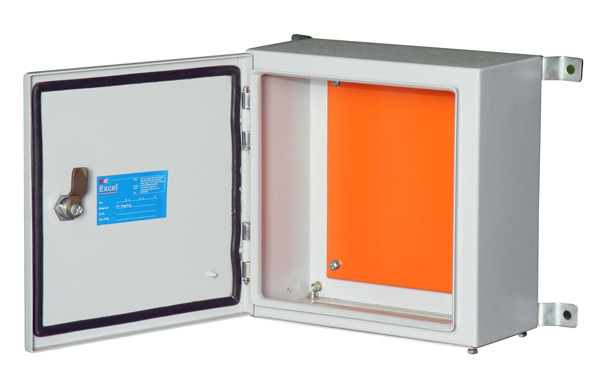

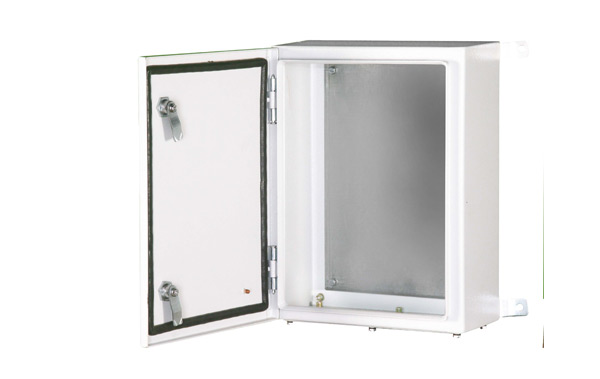

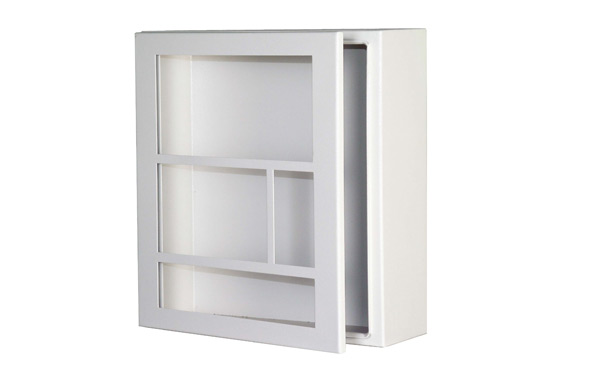

Junction Box
Junction Box

REQUEST A QUOTE


Features
  • IP-67 Ingress protection.
  • Welded body with sides, top and bottom closed in 1.2 thk folded CRCA sheet.
  • Front single door in 1.2 thk CRCA sheet. With metal hinges, cam locks.
  • Polyethylene gasket on door and polyurethane foam on gland plate, both are fire retardant.
  • M-4 tapped Z angles inside for DIN rail mountings (No component mounting plate inside).
  • As side walls are not removable, inter panel separator is not required here.
  • Gland plate optional at bottom in 2.00 thk CRCA.
  • These types of enclosures are not suitable to join together, however if needed we can join them.

Standard sizes :
Width Depth Height
100mm-600mm
( in pith of 50mm )		 80mm-200mm
( in pith of 50mm )		 100mm-600mm
( in pith of 50mm )

There is access from front only a sides and top are closed.
